•Integrated Design

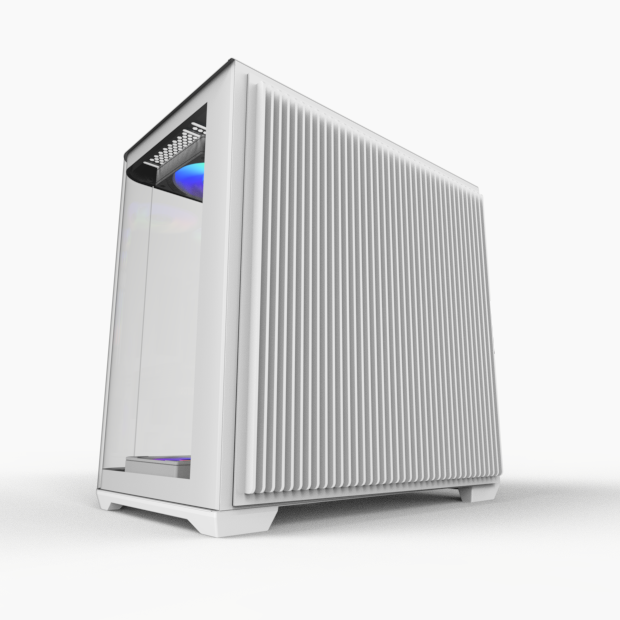

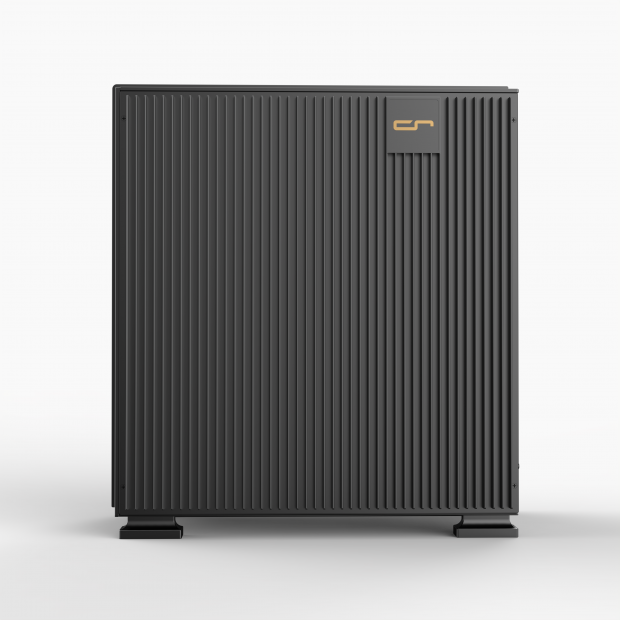

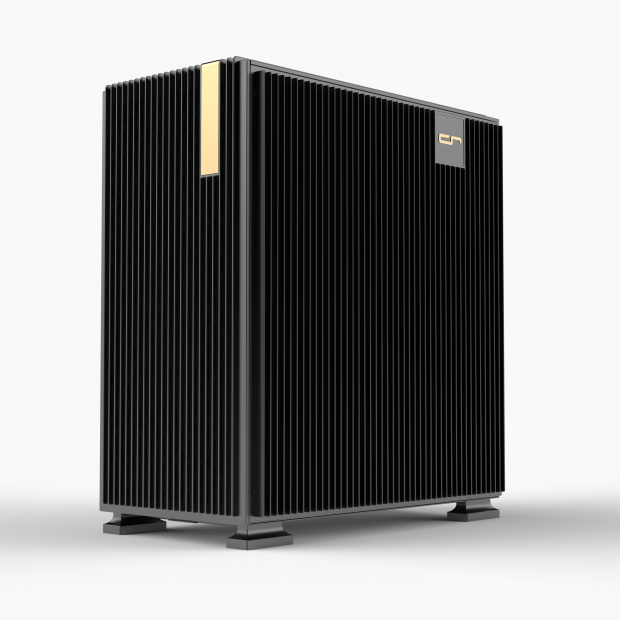

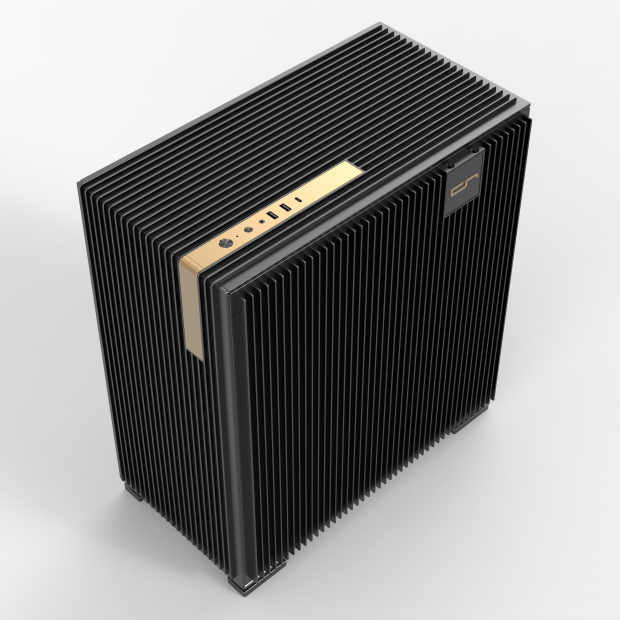

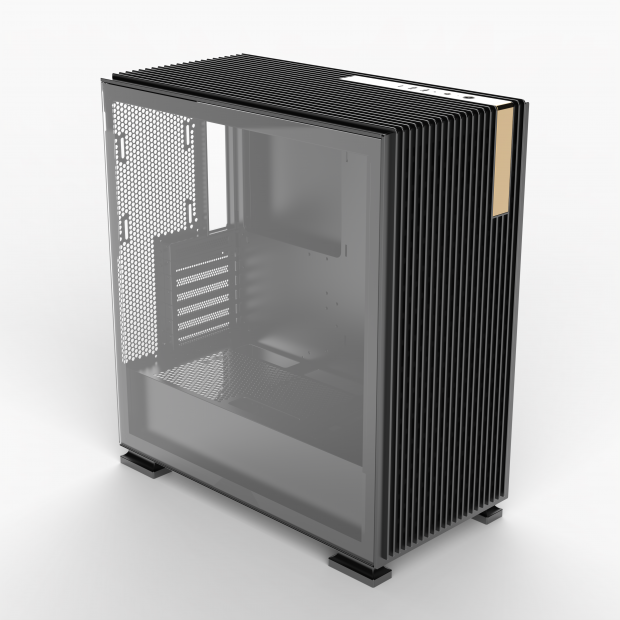

A unified design language seamlessly blends the case and fanless water cooling panel.
•Dual-Loop Cooling
Dual-flow channels optimize coolant circulation and heat exchange efficiency.

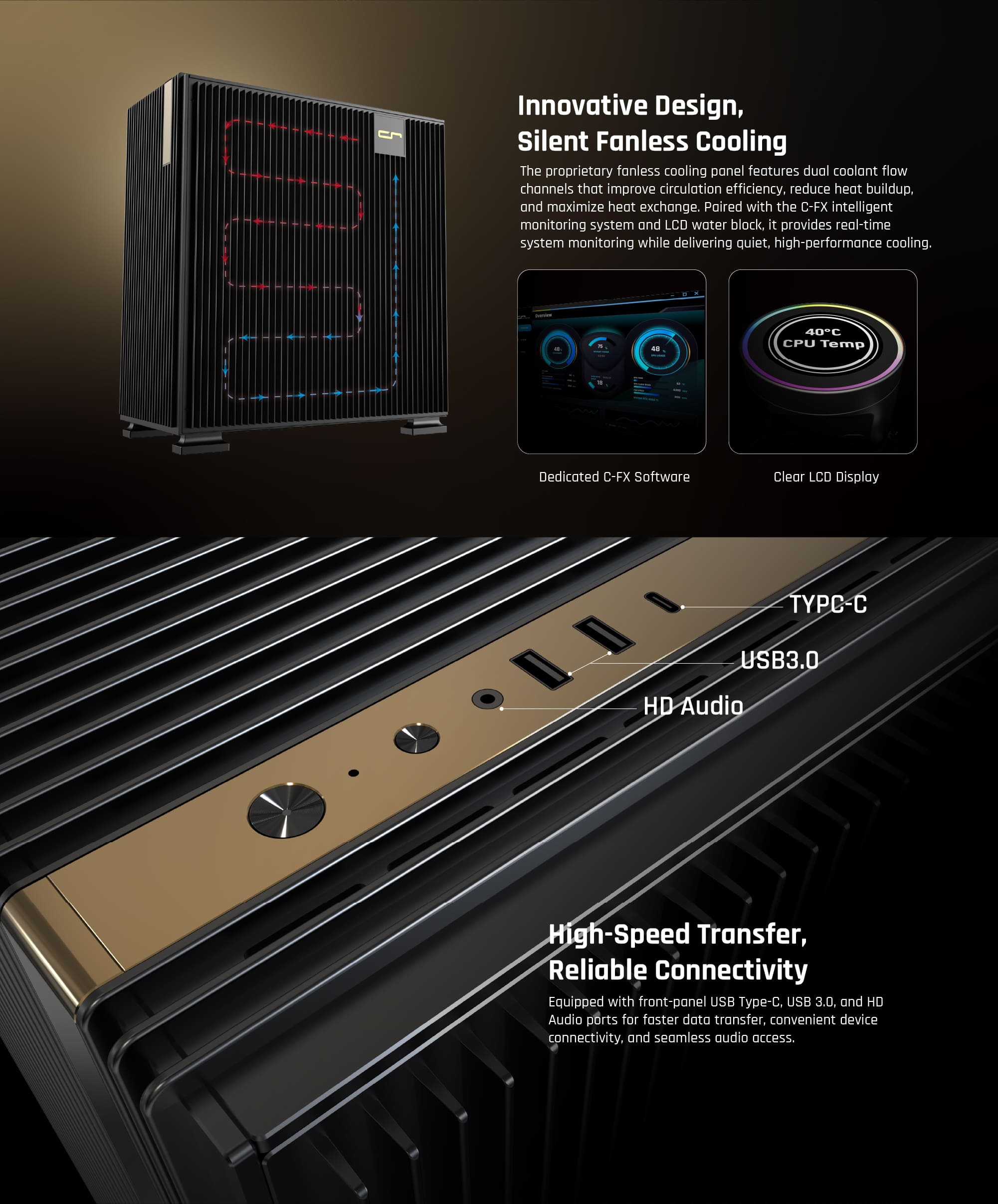

•Fanless Silent Cooling
Fanless water cooling combined with C-FX smart monitoring and an LCD water block delivers quiet and efficient cooling.
•Smart Temperature Monitoring
Real-time system temperature monitoring for stable operation.
•High-Speed Front I/O
Features USB Type-C, USB 3.0, and HD Audio for convenient connectivity.

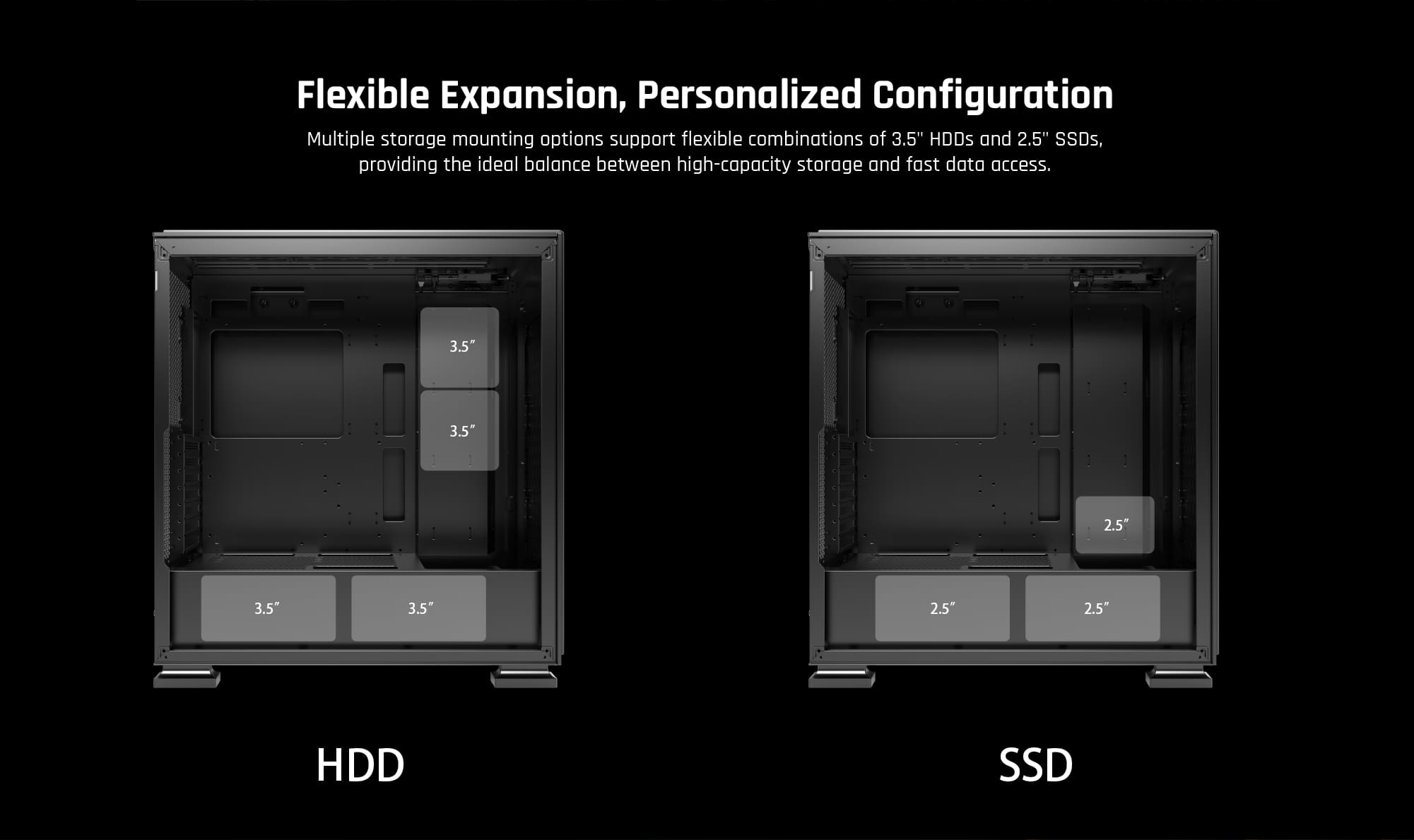

•Flexible Storage Expansion
Supports 3.5" HDD and 2.5" SSD configurations for versatile storage options.
/
/
/
/
/
DETAIL
SPECIFICATIONS
Cooling Panel Specifications
Cooling Panel Dimensions
450mm x 475mm x 19mm
Panel Material
Aluminum Alloy
Coolant
Pure Water
Pump Bearing Material
Ceramic Bearing
Pump Speed
2700±10% RPM
Passive Cooling Surface Area
550cm²
Coolant Capacity
450ml
Cooling Panel Weight
5.39kg

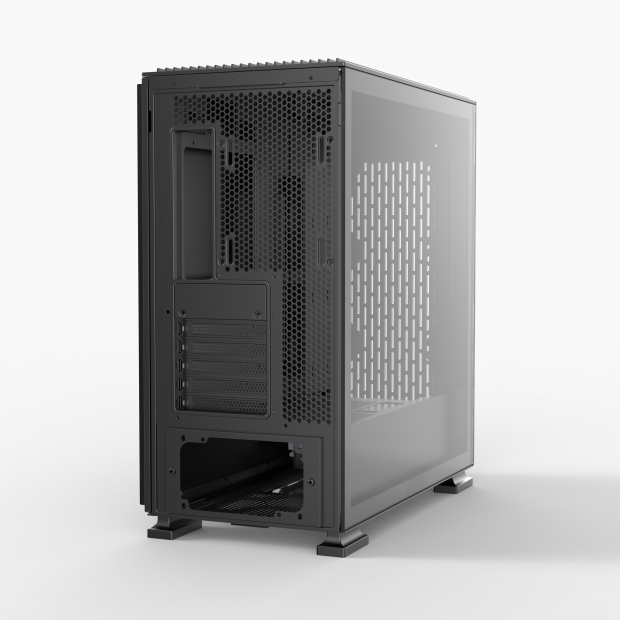

Chassis Specifications

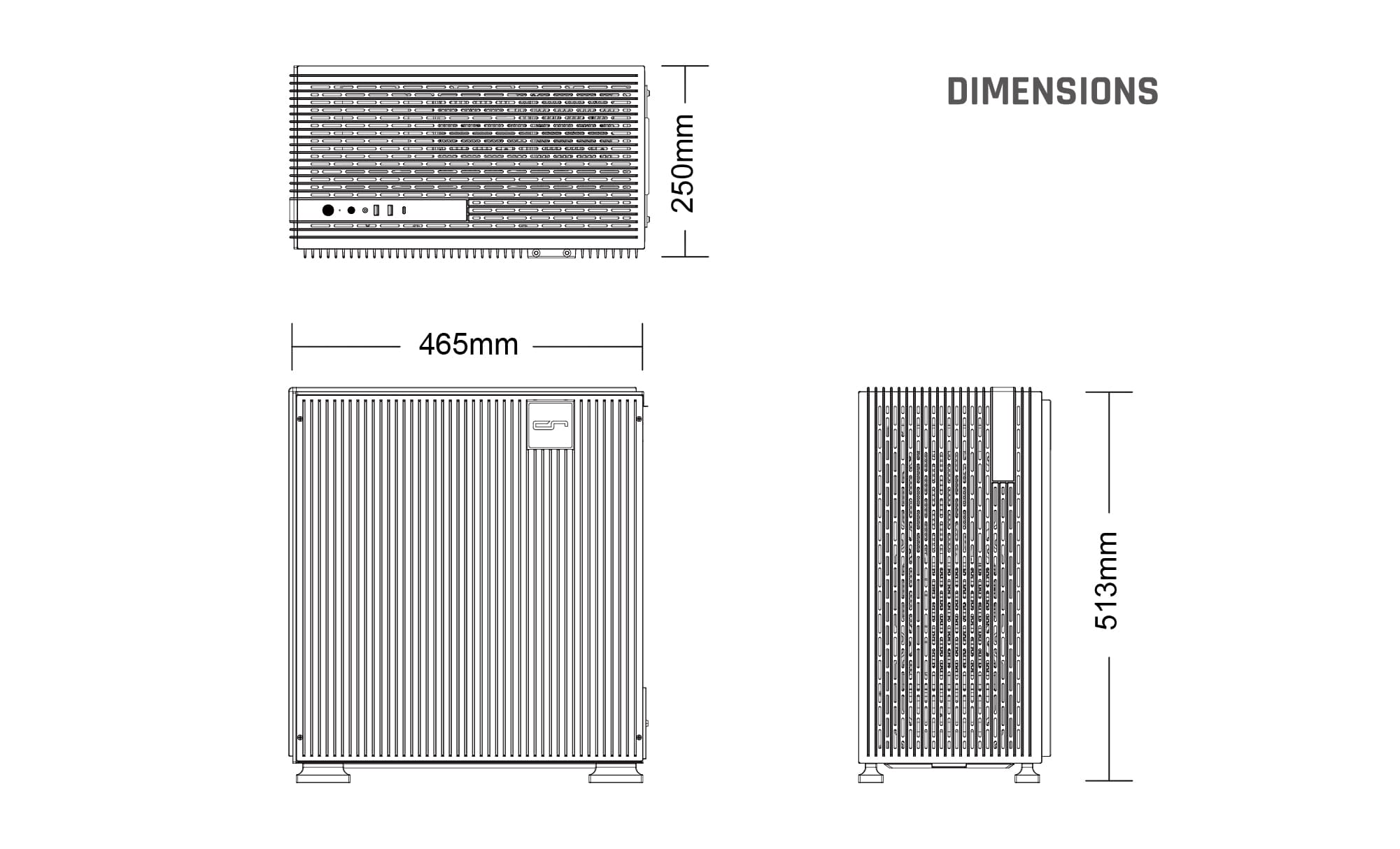

Dimensions
465*250*513MM
Audio Ports
USB3.0*2+ HD AUDIO+TYPE C*1
PCI Expansion Slots
7
Max. GPU Length
420mm
Max. PSU Length
270mm
Motherboard Support
ITX,M-ATX ,ATX
Dust Filter
Magnetic Bottom Dust Filter
Drive Bays
3.5"HDD*4PCS or 2.5"SSD*3PCS
Fan Support
Front:12cmx3 or 14cmx3;Rear:12cmx1
or 14cmx1;Top:12cmx3 or 14cmx3
