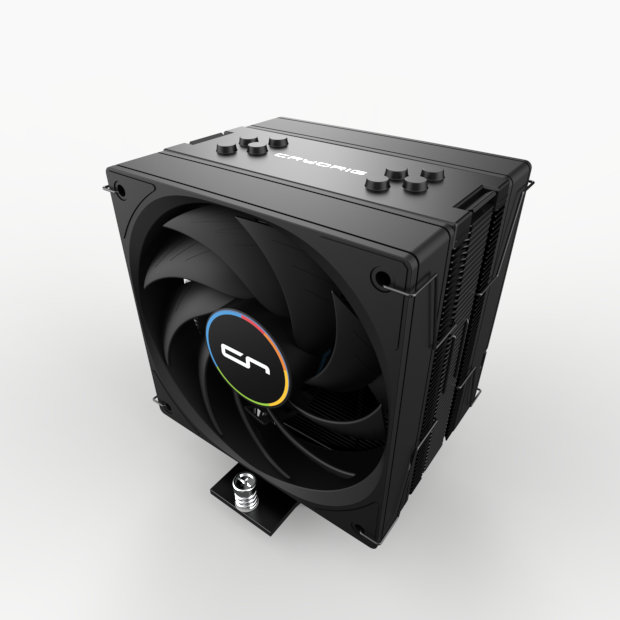

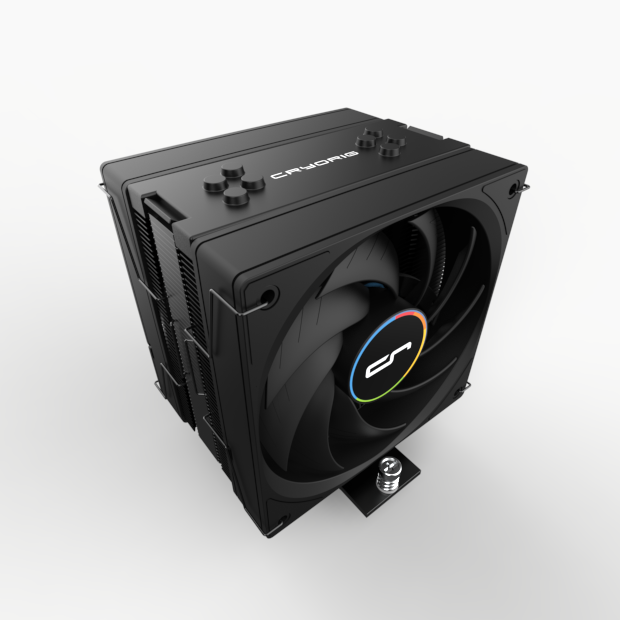

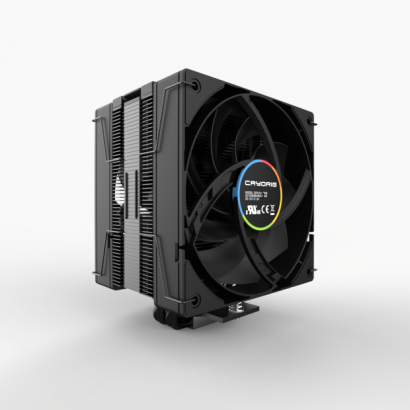

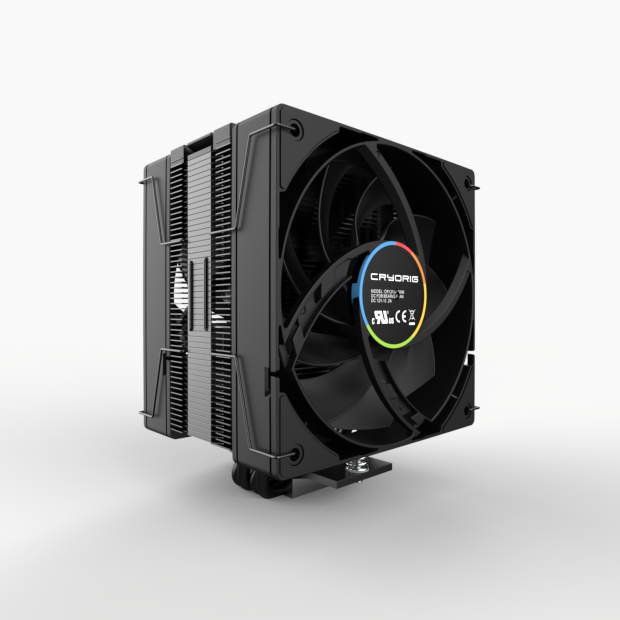

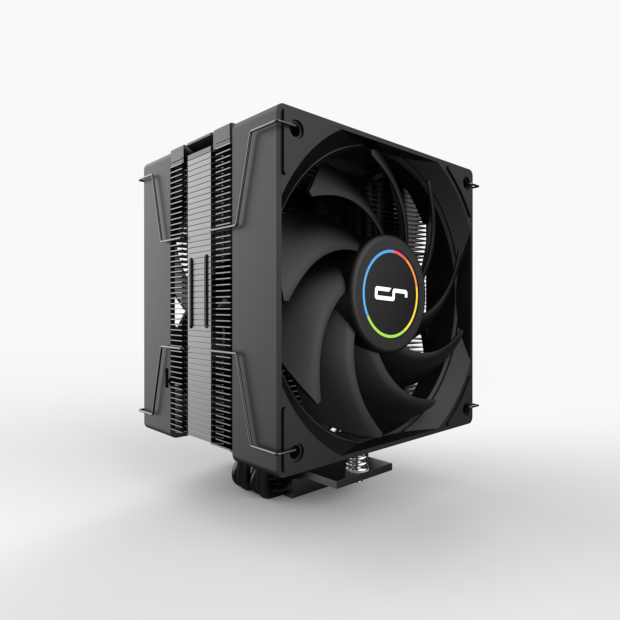

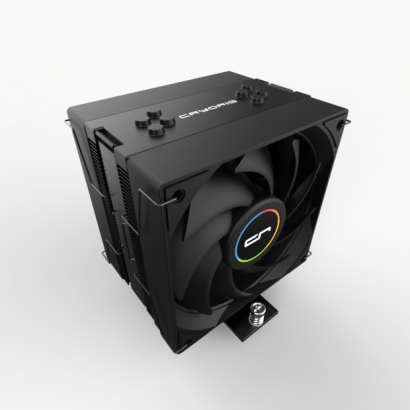

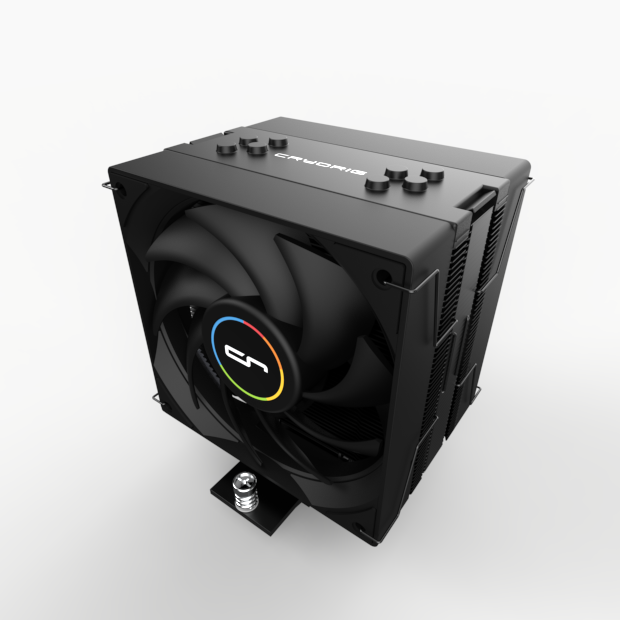

AIR CPU COOLER

CR4S plus

CR4S plus

•Single-Tower Design with 4 Heatpipes & Dual Fans
Supports up to 200W thermal loads for powerful cooling performance.

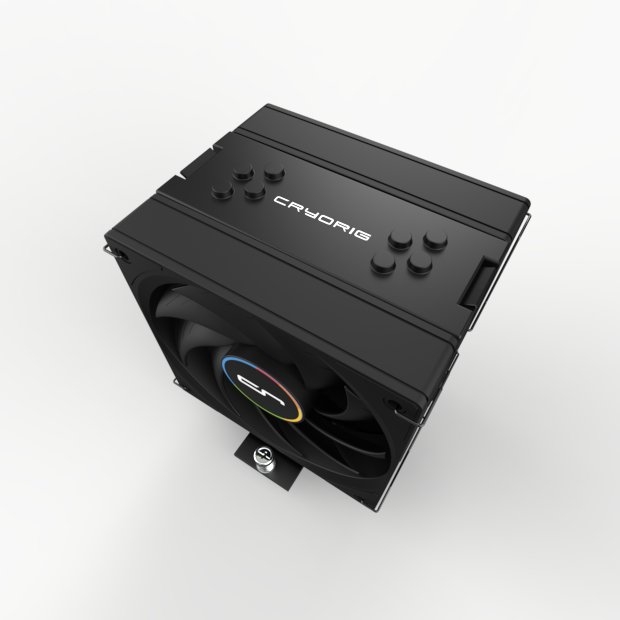

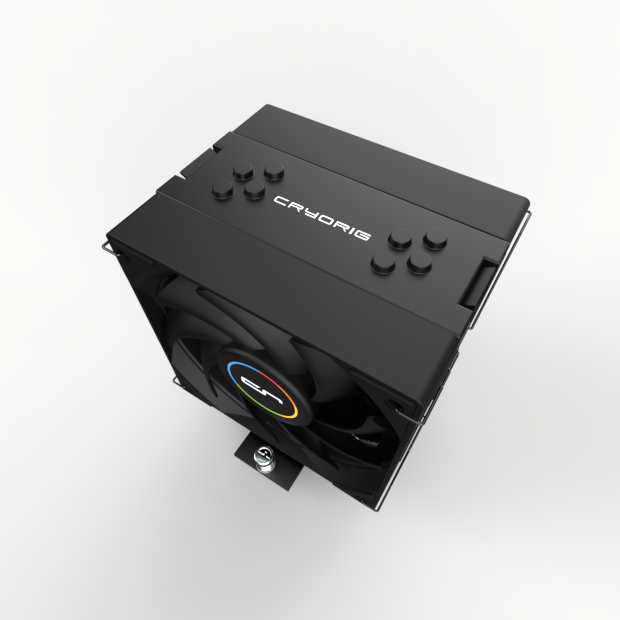

•Classic Minimalist Design
A refined top cover inspired by the classic H7 design.
•Four Direct Contact Copper Heatpipes
Direct CPU contact enables fast and efficient heat transfer.

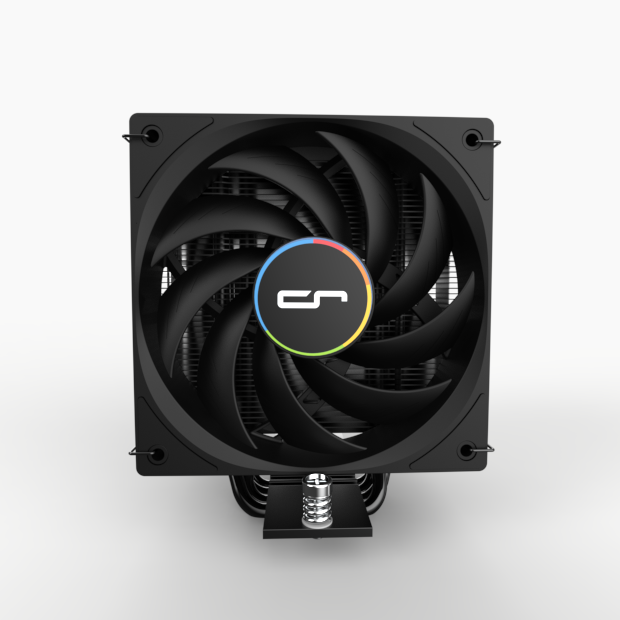

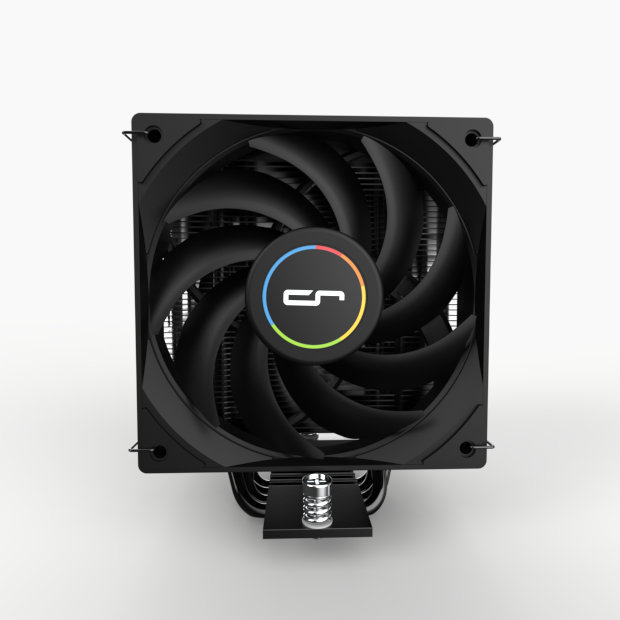

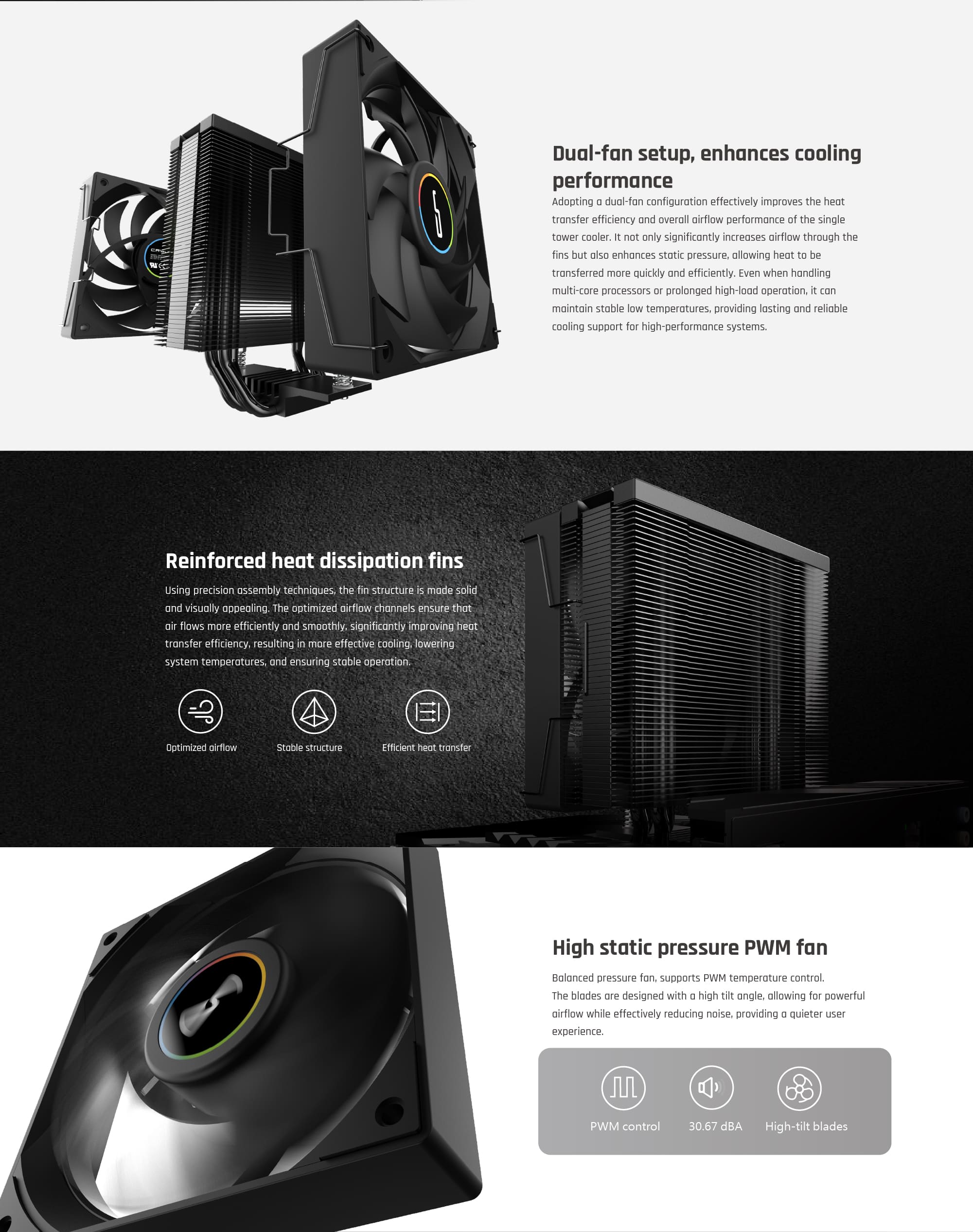

•Dual-Fan Cooling
Enhanced airflow and static pressure efficiently dissipate heat from the fin stack.

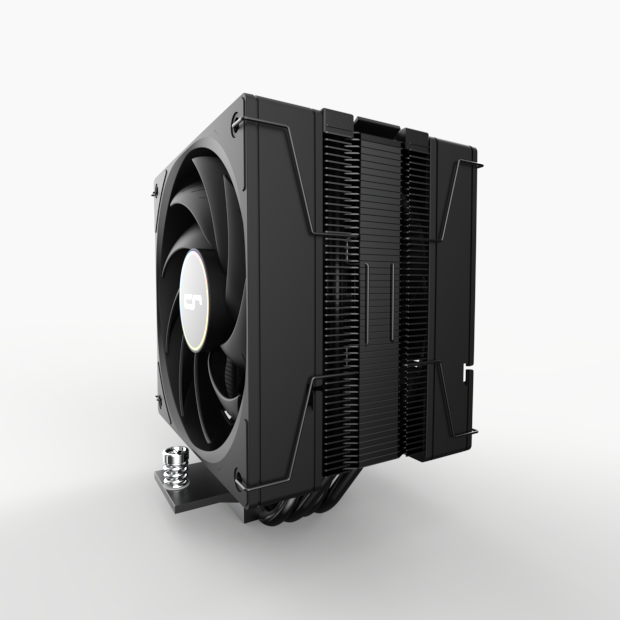

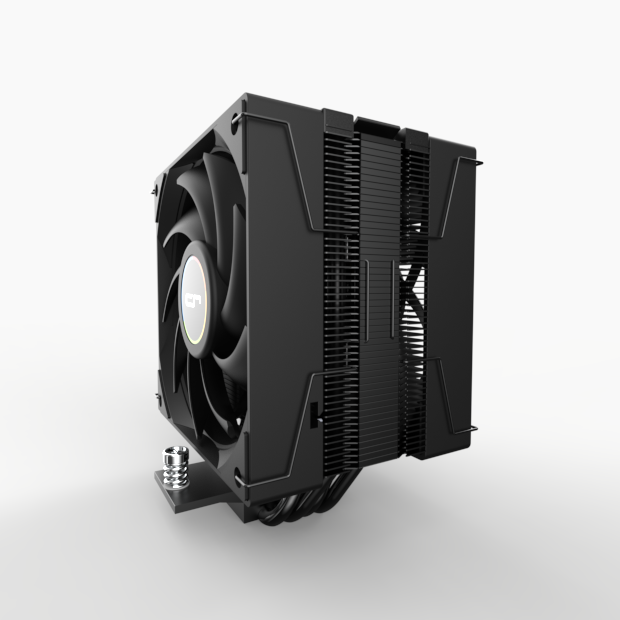

•Reinforced Fin Stack
Optimized airflow channels improve heat transfer and cooling efficiency.
•High-Pressure PWM Fans
High-angle blades deliver strong airflow with reduced noise and PWM speed control.
  • 1.png
  • 2.png
  • 3.png
  • 4.png
  • 5.png
  • 6.png

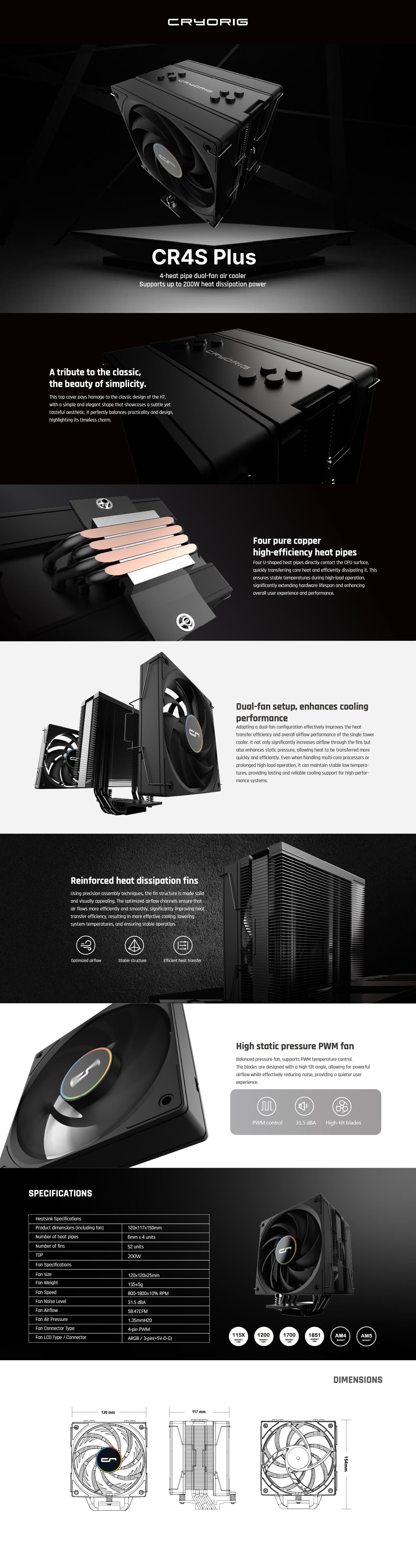

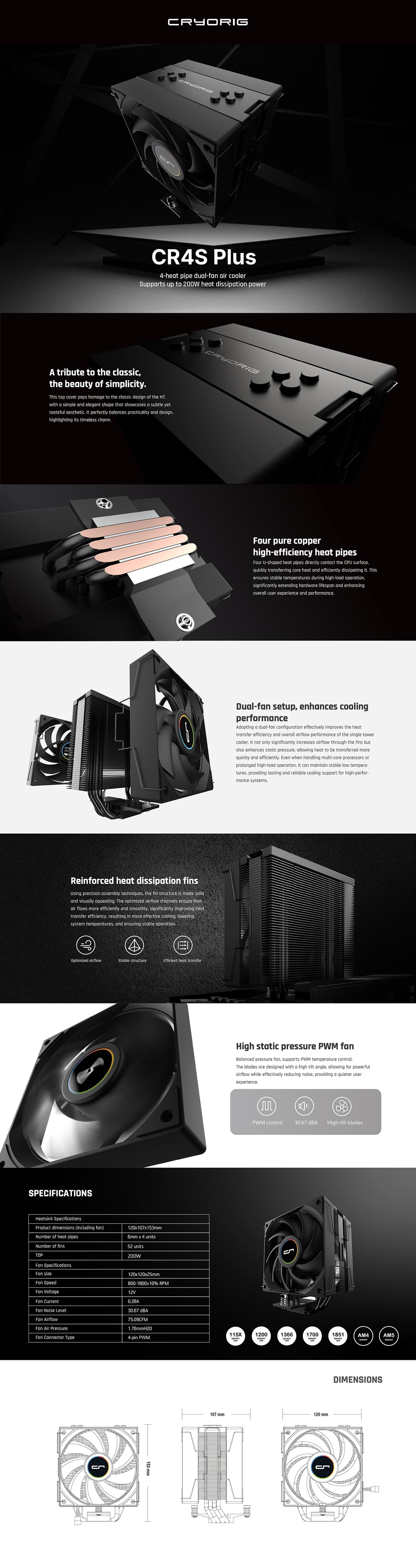

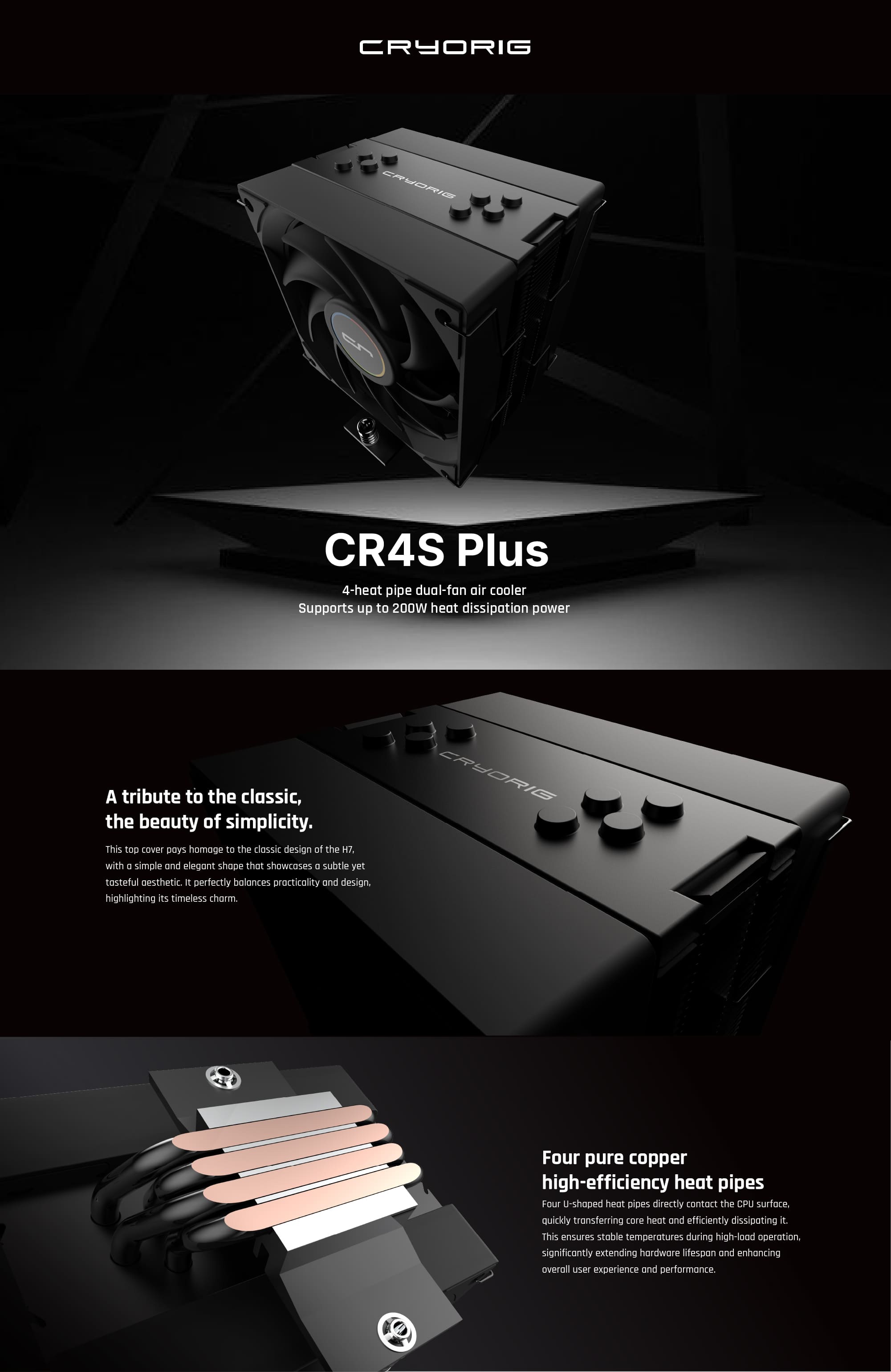

DETAIL
SPECIFICATIONS
Heatsink Specifications

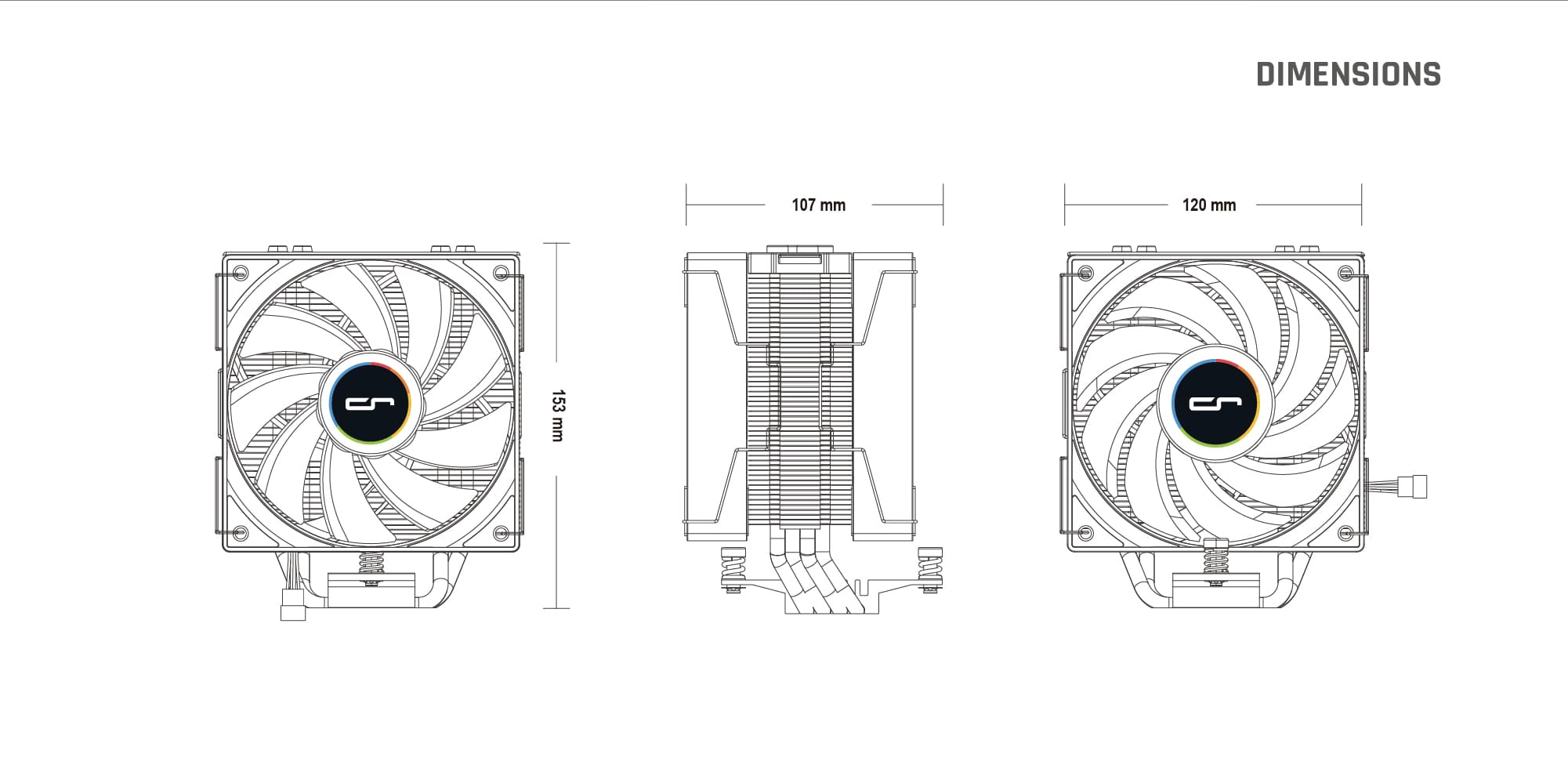

Product dimensions (including fan) 120x107x153mm
Number of heat pipes 6mm x 4 units
Number of fins 52 units
TDP 220W
Fan Specifications
Fan Size 120 x 120 x 25mm
Fan Speed 800-1800±10%RPM
Fan Voltage 12V
Fan Current 0.28A
Fan Noise Level 30.67 dBA
Fan Airflow 75.09CFM
Fan Air Pressure 1.76mmH20
Fan Connector Type 4-pin PWM
