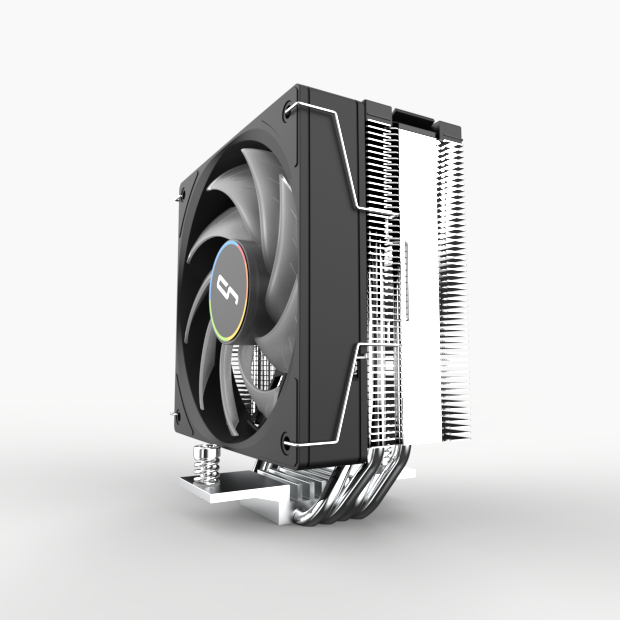

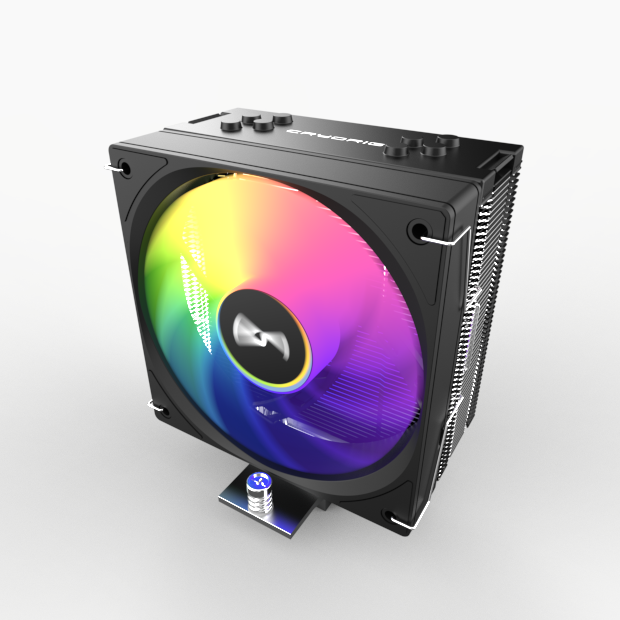

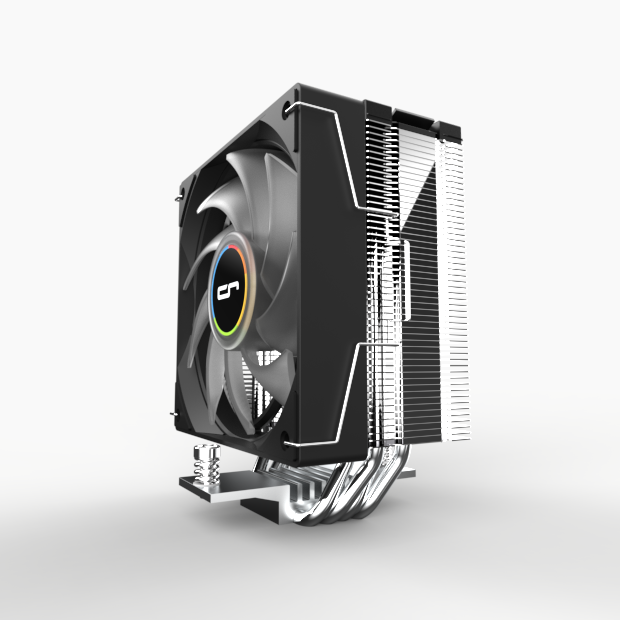

AIR CPU COOLER

CR4S

CR4S

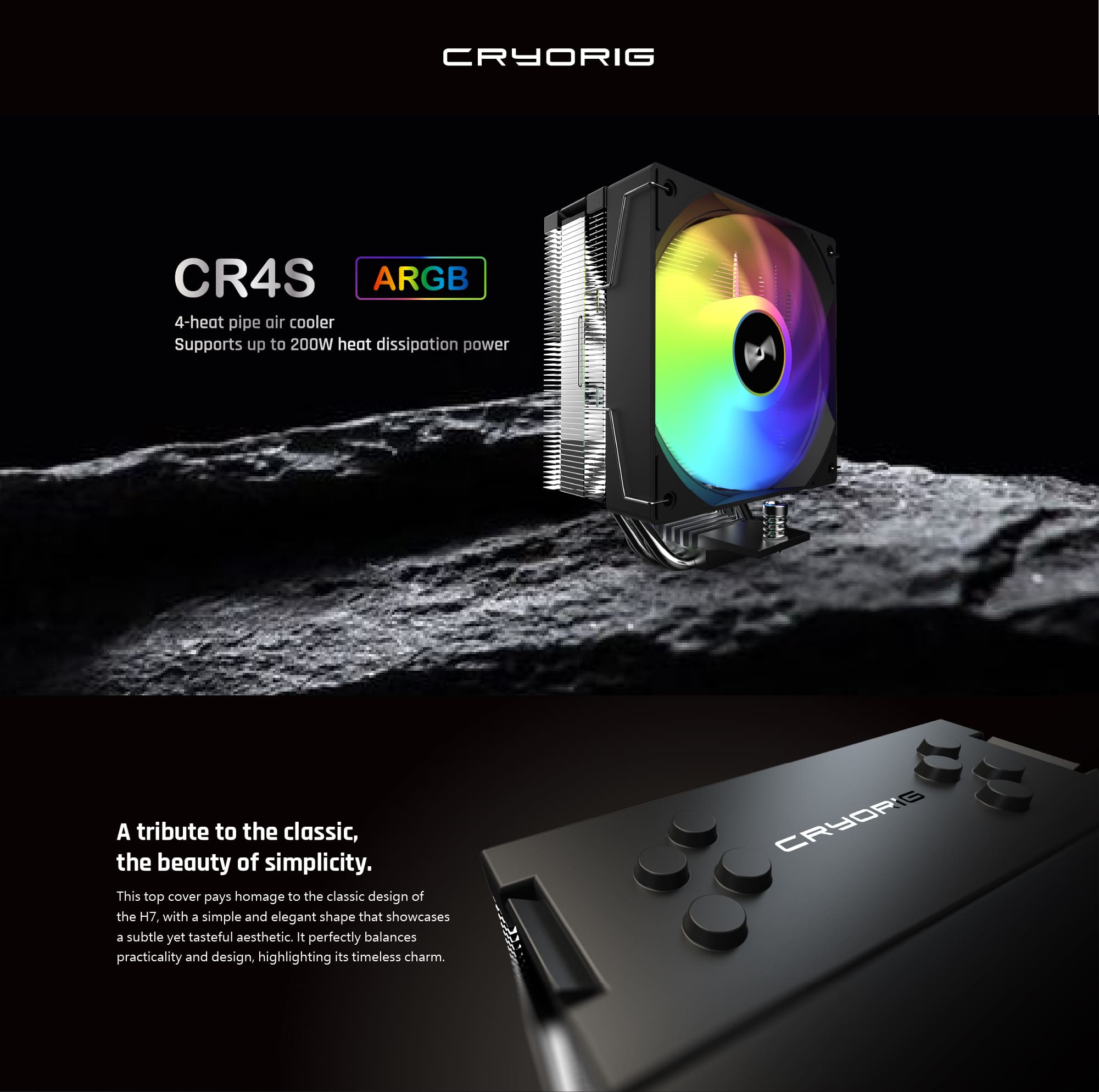

•Single-Tower Design with 4 Heatpipes
Supports up to 200W thermal loads for reliable cooling performance.

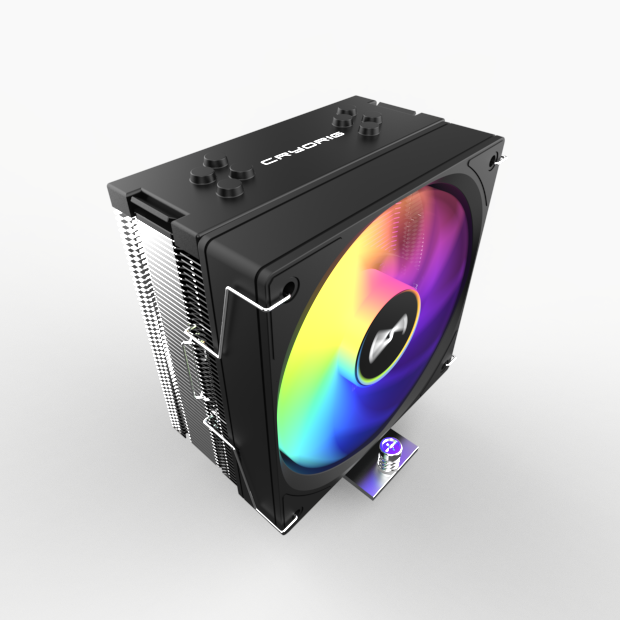

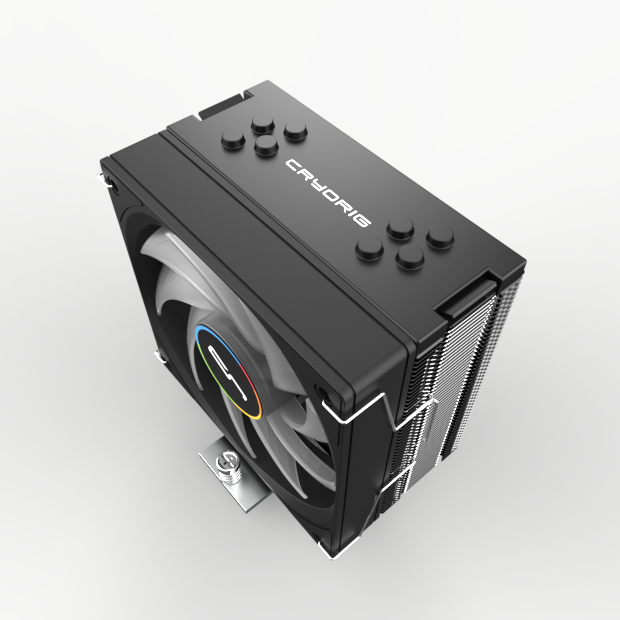

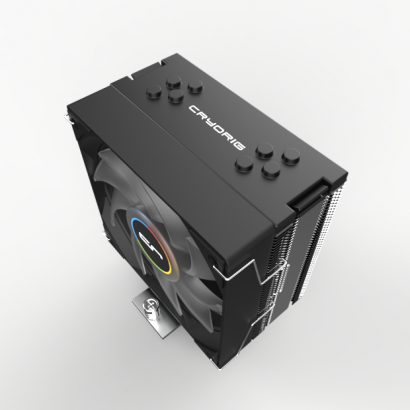

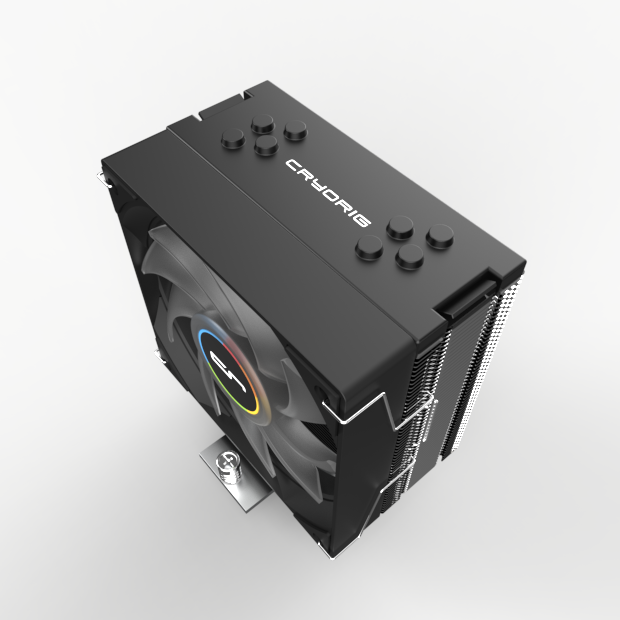

•Classic Minimalist Design
A refined top cover inspired by the classic H7 design.

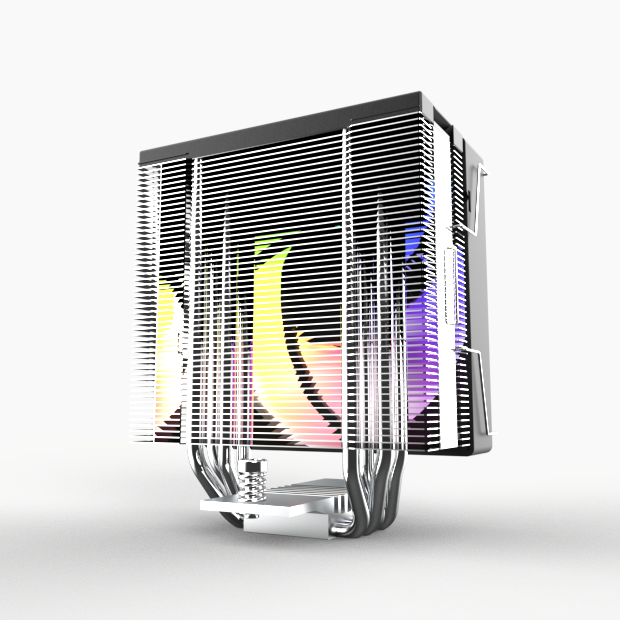

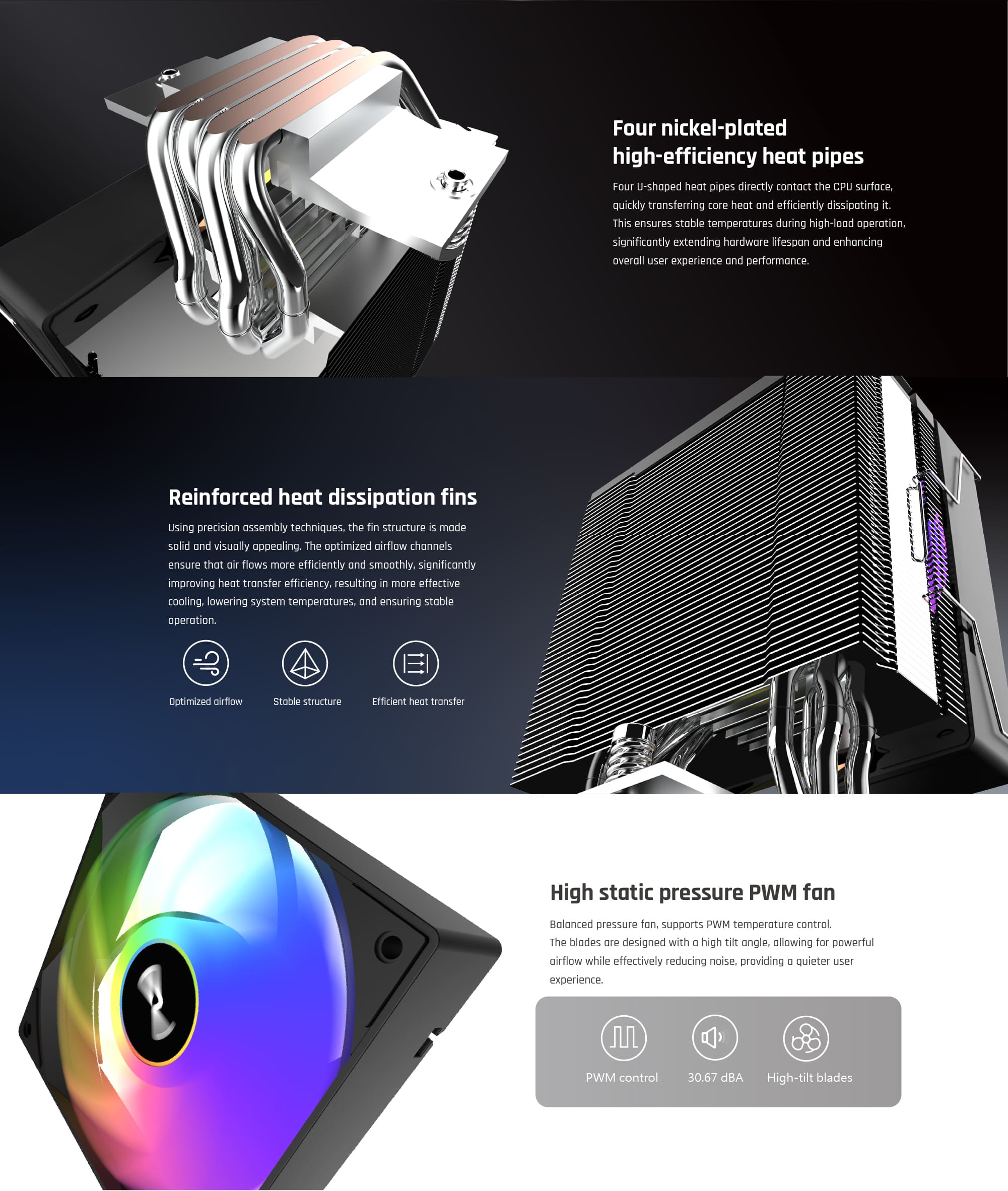

•Four Nickel-Plated Direct Contact Heatpipes
U-shaped heatpipes directly contact the CPU for fast and efficient heat transfer.

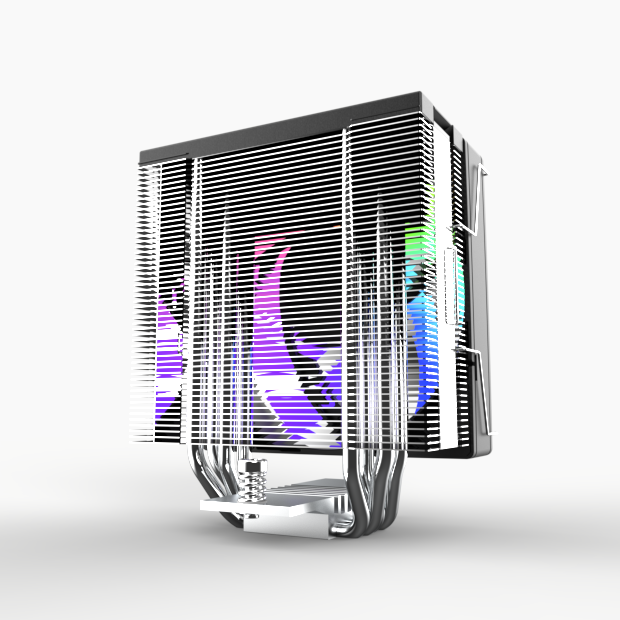

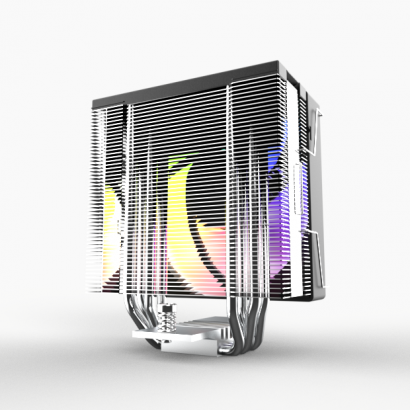

•Reinforced Fin Stack
Optimized airflow channels improve heat transfer and cooling efficiency.

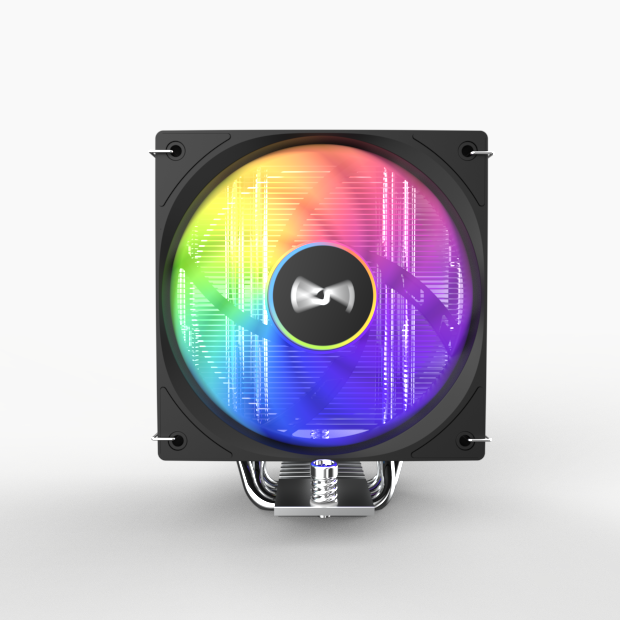

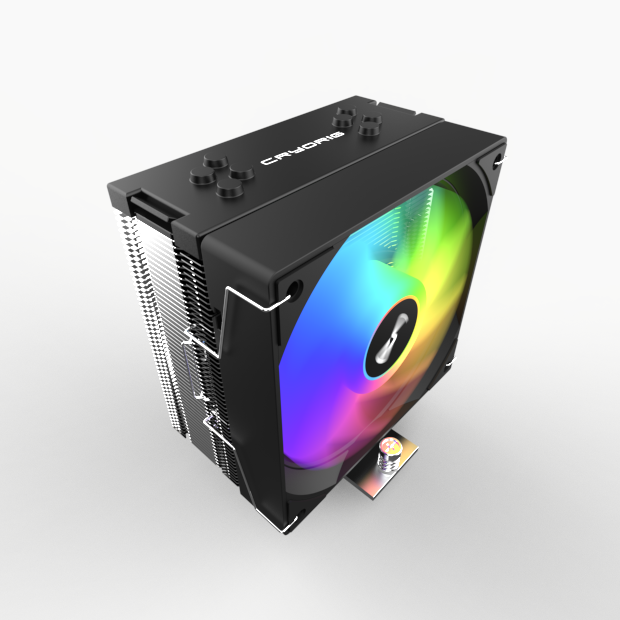

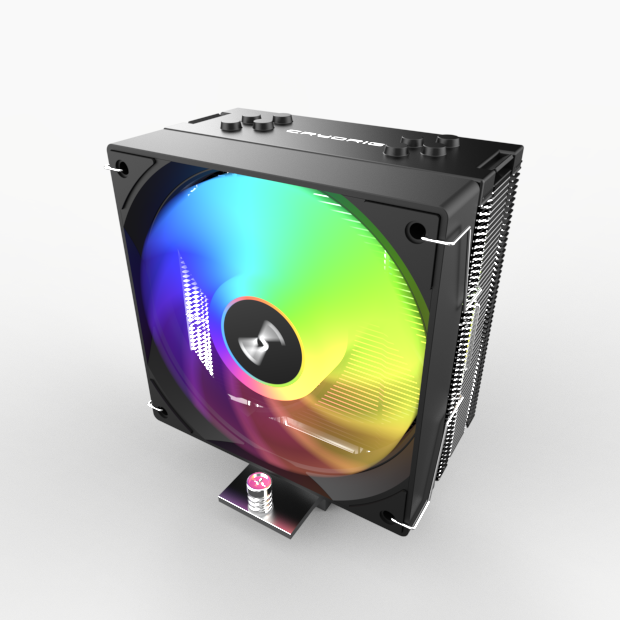

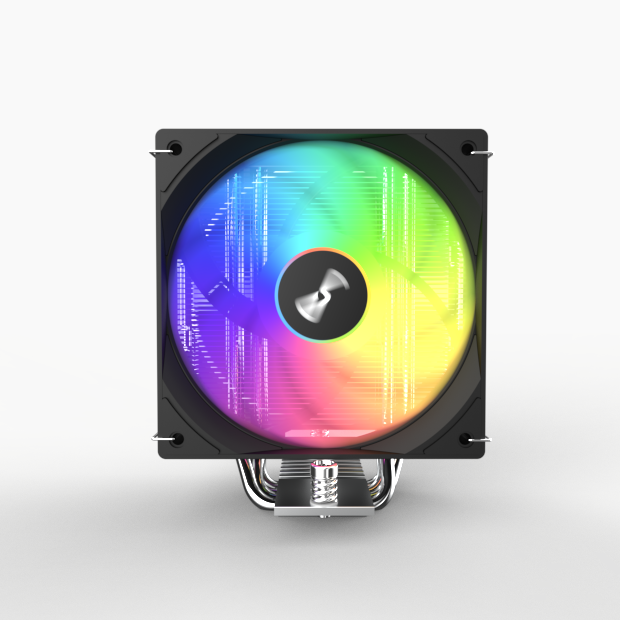

•High-Pressure PWM Fan
High-angle blades deliver strong airflow with low-noise operation and PWM speed control.
  • 1.png
  • 2.png
  • 3.png
  • 4.png
  • 5.png
  • 6.png

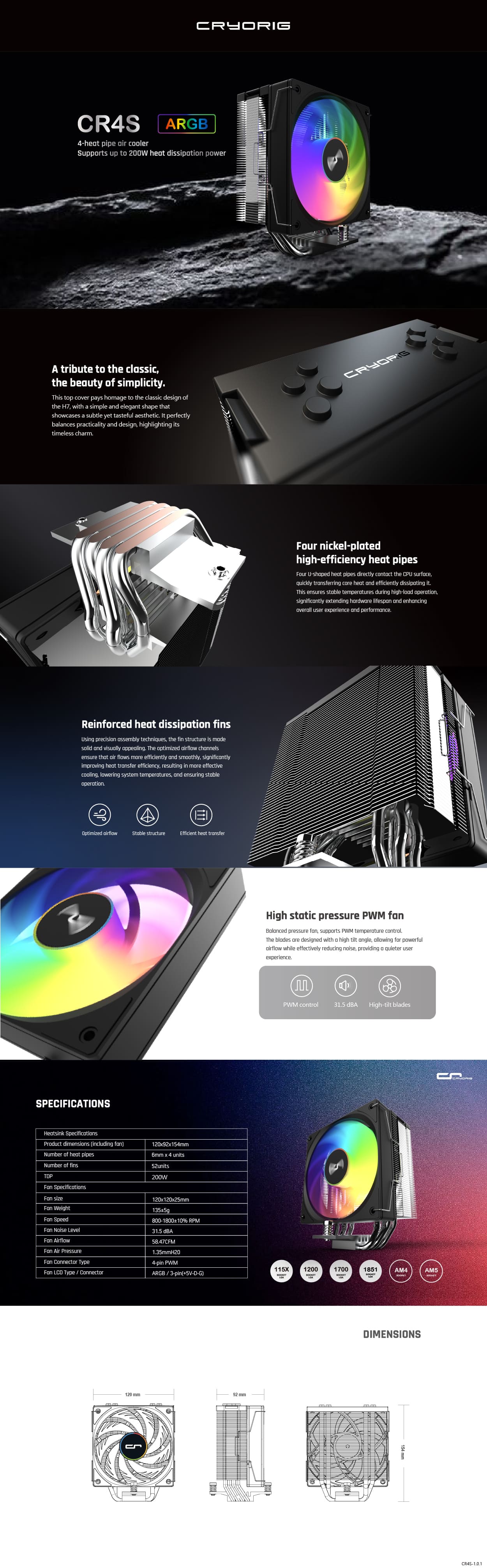

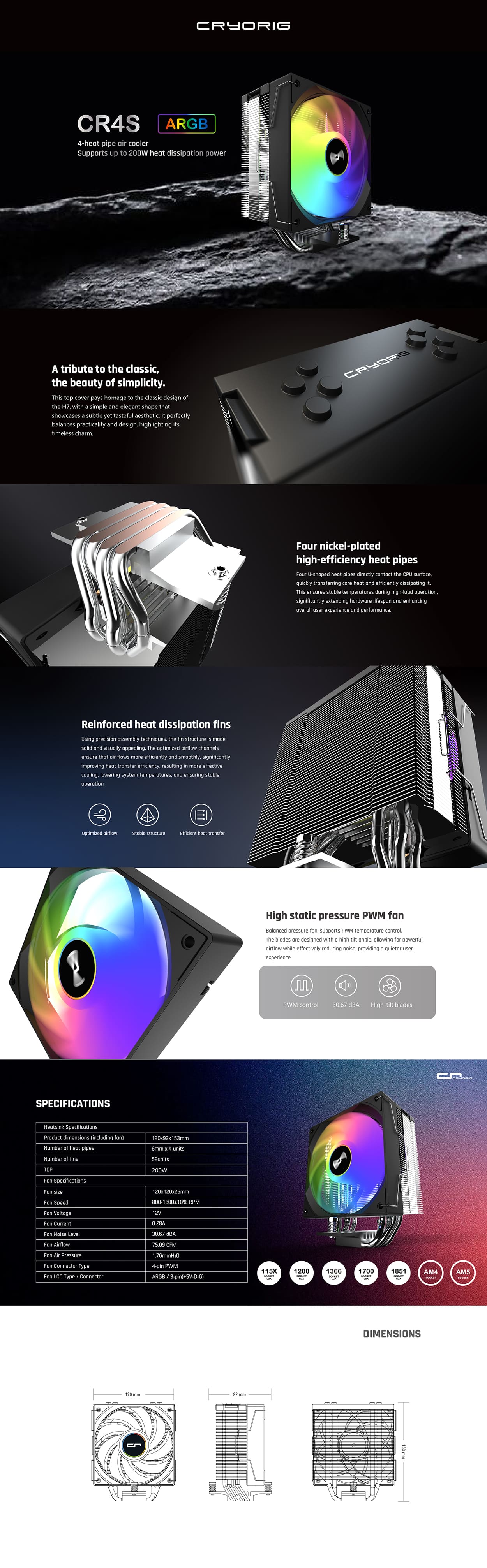

DETAIL
SPECIFICATIONS
Heatsink Specifications

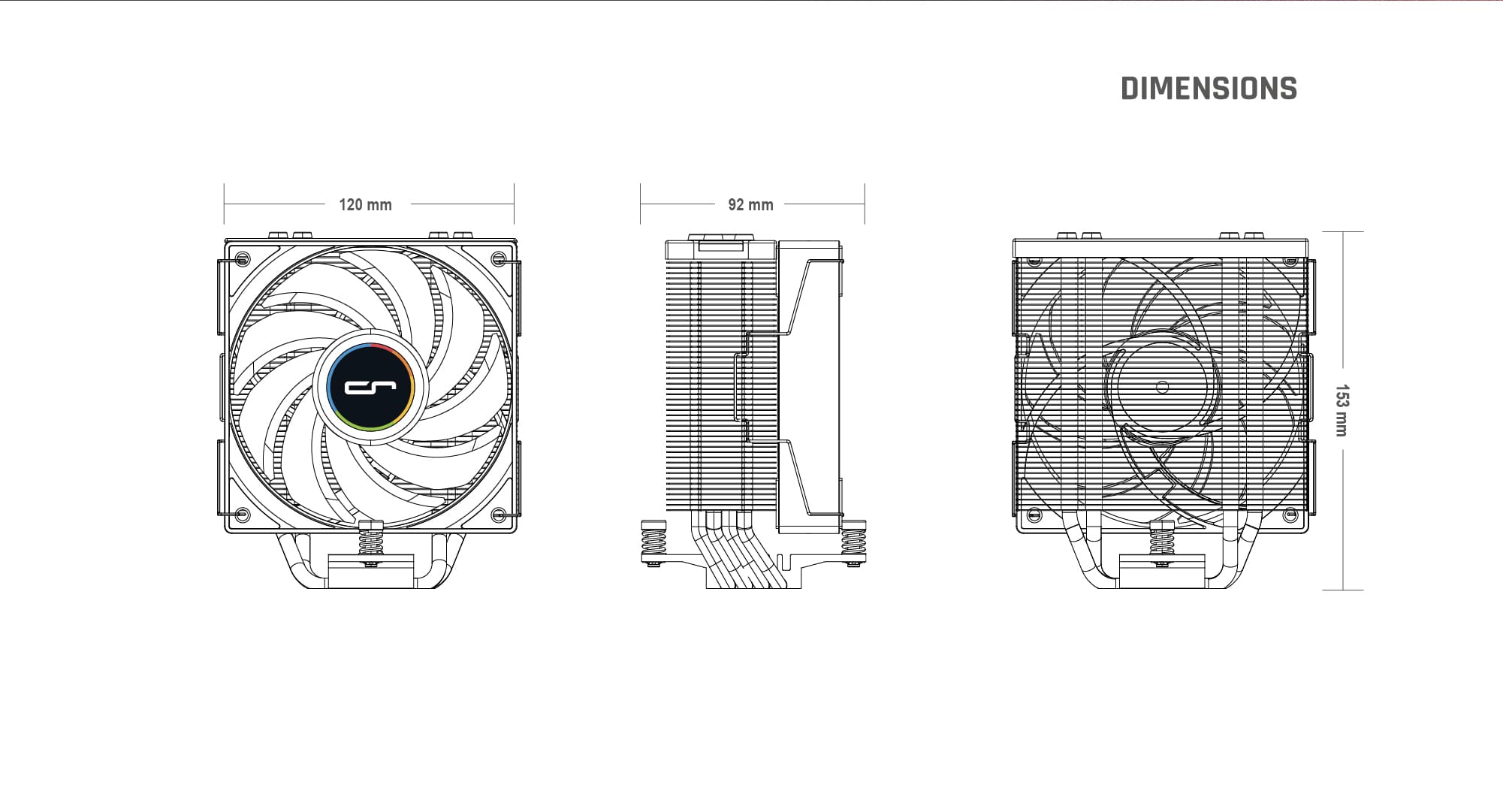

Product dimensions (including fan) 120x92x153mm
Number of heat pipes 6mm x 4 units
Number of fins 52units
TDP 200W
Fan Specifications
Fan Size 120 x 120 x 25mm
Fan Speed 800-1800±10%RPM
Fan Voltage 12V
Fan Current 0.28A
Fan Noise Level 30.67 dBA
Fan Airflow 75.09CFM
Fan Air Pressure 1.76mmH2O
Fan Connector Type 4-pin PWM
Fan LED Type/Connector  ARGB/3-pin(+5V-D-G)
